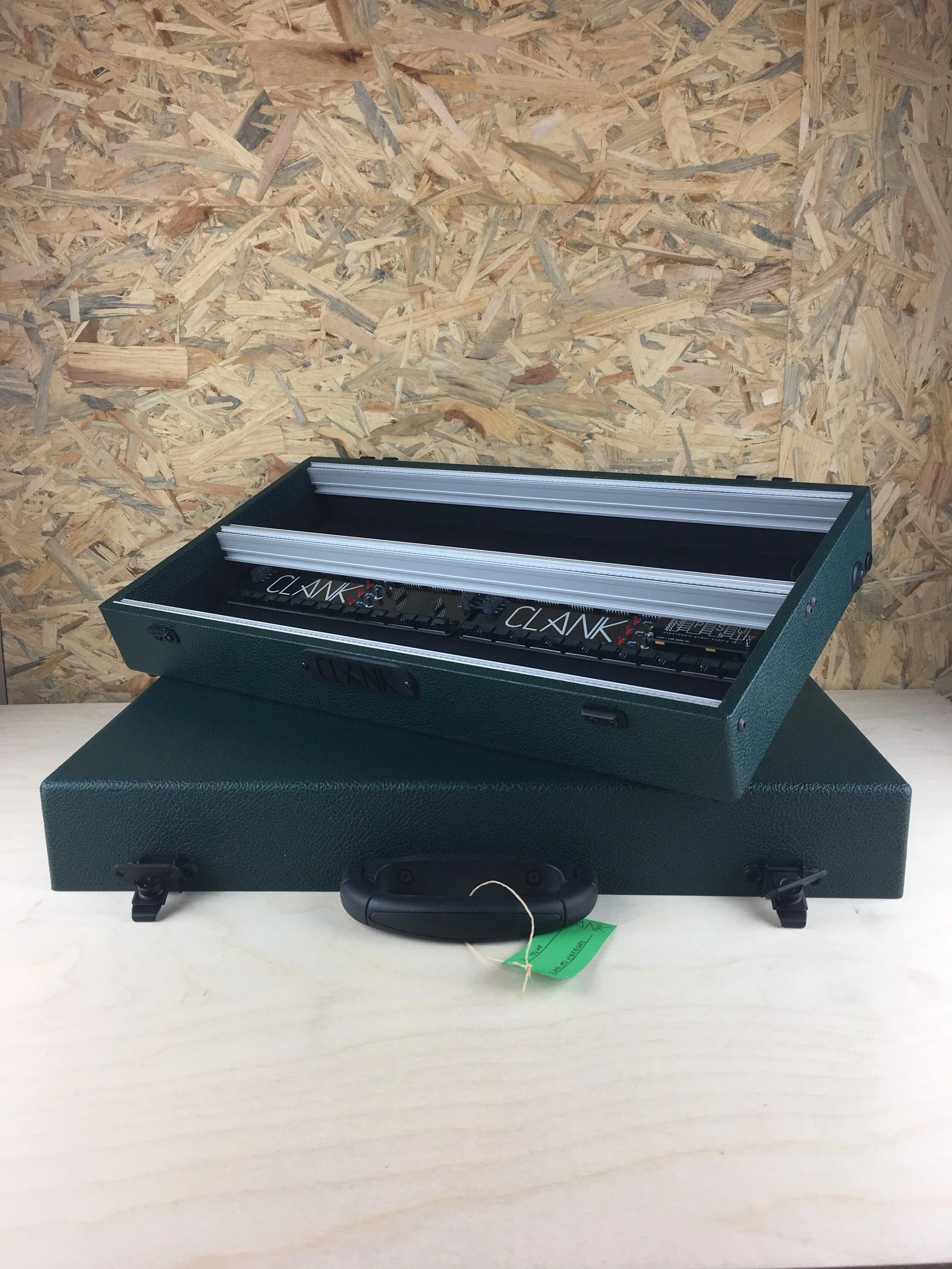

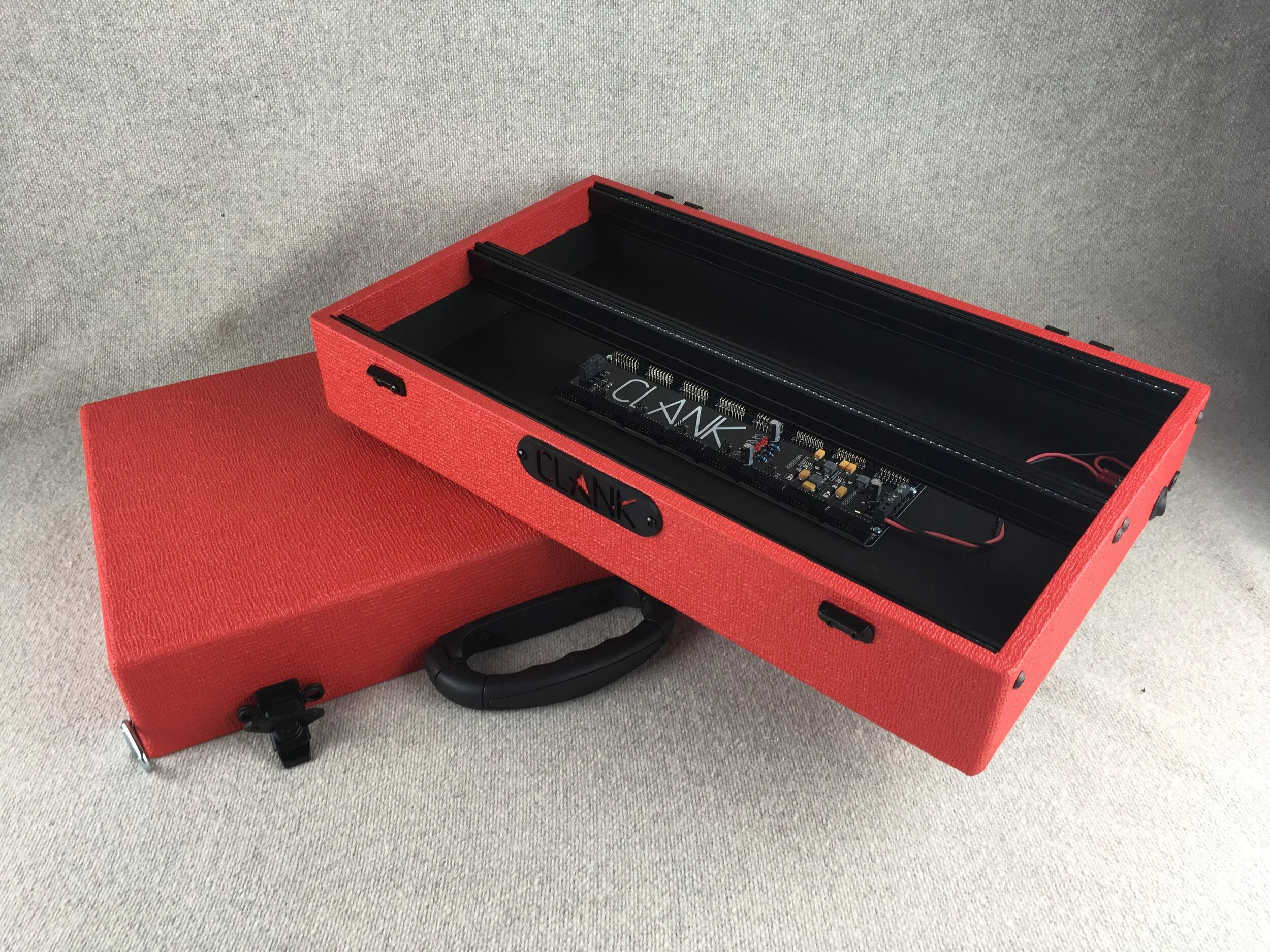

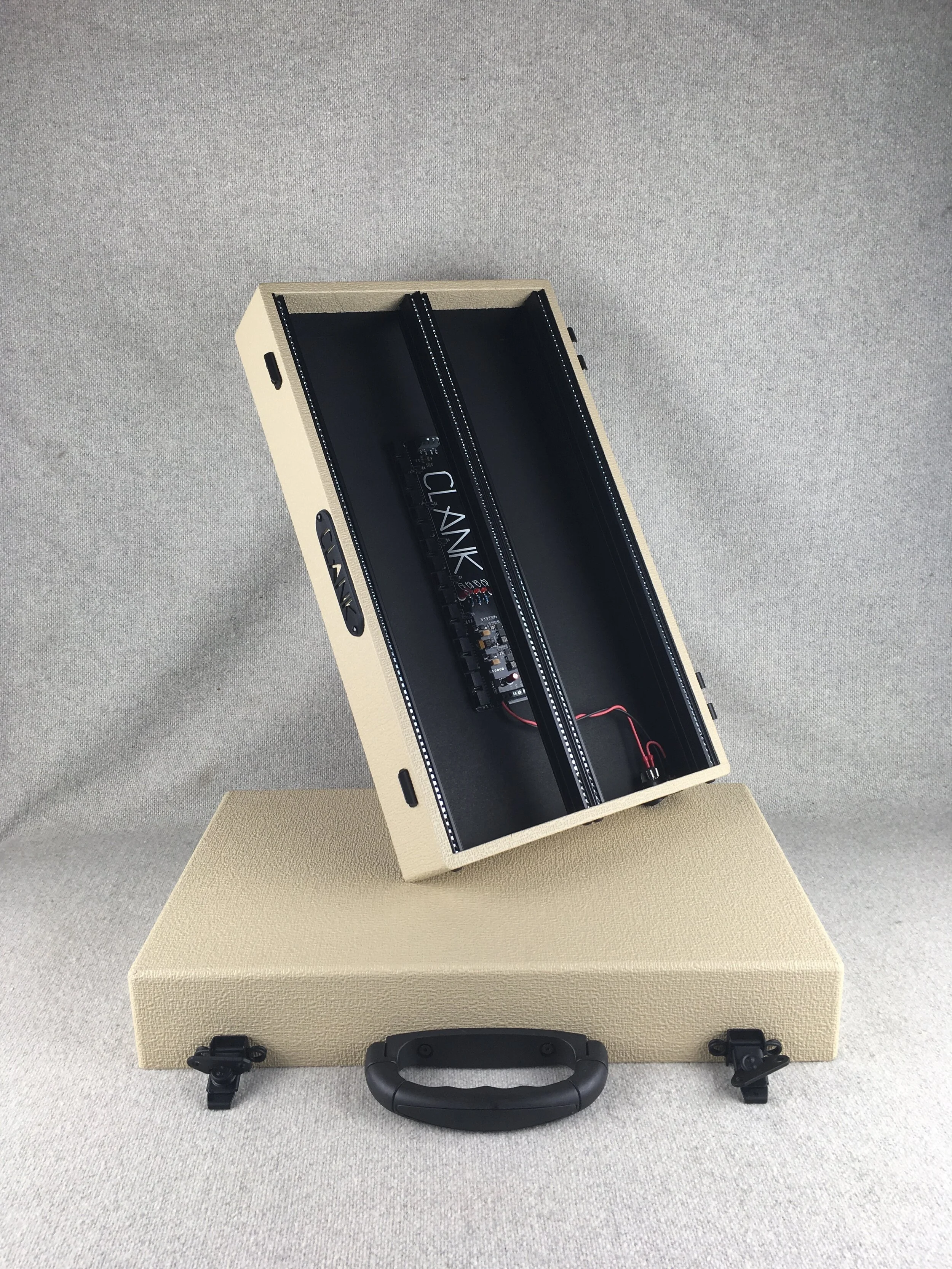

EURORACK CASE
Our cases are crafted from 9/6mm Baltic birch plywood, which is a sturdy yet lightweight material. We prioritize portability above all else.
We really love Tolex—it’s easy to clean up and scratch-resistant. We have ten years of experience covering amplifiers and cabinets, and we have carried this experience onto our cases.
We use only the best hardware and materials available, like Penn Elcom black butterfly catches and hinges, black rails w/ sliding nuts (3mm pitch)
6U 54hp 29.4/ 26.0 / 15.0H cm / 3.2kg one XPSU Coreboard (16IDC)
6U 70hp 37.5/ 26.0 / 15.0H cm / 3.5kg one XPSU Coreboard (16IDC)
6U 90hp 47.8 / 26.0 / 15.0H cm / 3.9kg one XPSU Coreboard (16IDC)
6U 104hp 55 / 26.0 / 15.0H cm / 4.3kg one XPSU Coreboard and one Busboard (32IDC total)
Height is 75mm for either case and lid (66 internal depth, 50 over XPSU)
XPSU delivery 3,5A +12v / 1,5A -12V /-1A 5V
External 15V ac/dc power brick is NOT included,
If you need one, you can add it to the section below.
TIMINGS
Ordering is now available! Please note that the current waiting time is approximately one month.
ORDERING INFOS
All our cases are custom built depending on your needs.
- We open a new batch order approximately every two month.
- Order windows close after 2 weeks at most or when maximum production capacity is reached.
-Please note that building your case will take up to six weeks after the order window is closed.
-Order only if you’re absolutely sure about it. We will not offer any refunds unless the case is not shipped after 8 weeks from the closing of the batch orders.
Even in this situation, payment fees (4% of the order total) will not be refunded anyway.
-We always provide the tracking number as the case leaves our lab. If the package returns to us because you were not able to receive it, any duties, return expenses or new shipping costs will be charged to you.
// XPSU SPECS
All our cases come with our XPSU, a modern dc/dc switching unit composed by two unit, a powered Coreboard and a unpowered Busboard.
The power rails are balanced according to standard Eurorack modules ratio of power consumption.
A dedicated copper plane is present for every power rail ensuring low noise/low impedance paths and better heat loss.
Beside the copper layers, every connector is individually filtered with three independent LC filters. This has been done to avoid parasite noises and to reduce crosstalks/bleeds between modules.
In total we used 96 components for the filtering job and it proved to be worth it.
We believe in the power of i2C and that it will be more and more used in the future.
That’s why we wanted to encourage this trend by adding a dedicated active i2c busboard. Seven 2x03/2.54” pin connectors with pullup resistors are used for that purpose.
ARE YOU INTERESTED TO BUY THE XPSU ALONE?
3,5A +12v / 1,5A -12V /-1A 5V 16IDC I2C BUS
comes with a DC plug, switch and a 20cm cable to connect the coreboard

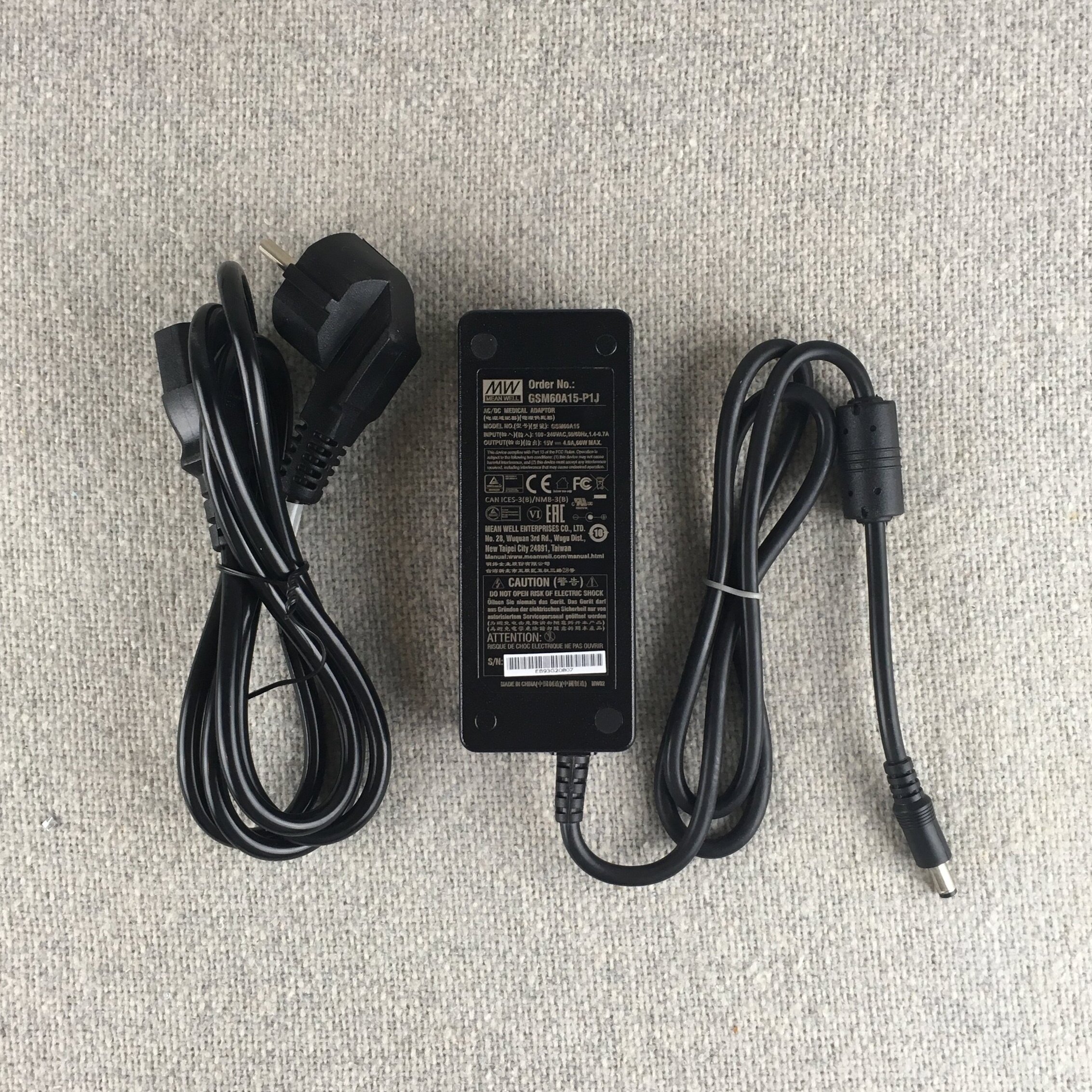

If you’re buying a powered case you’ll need an external center positive 15v AC/DC power brick with at least 60W of power.
If you don’t have one, add this to your basket.

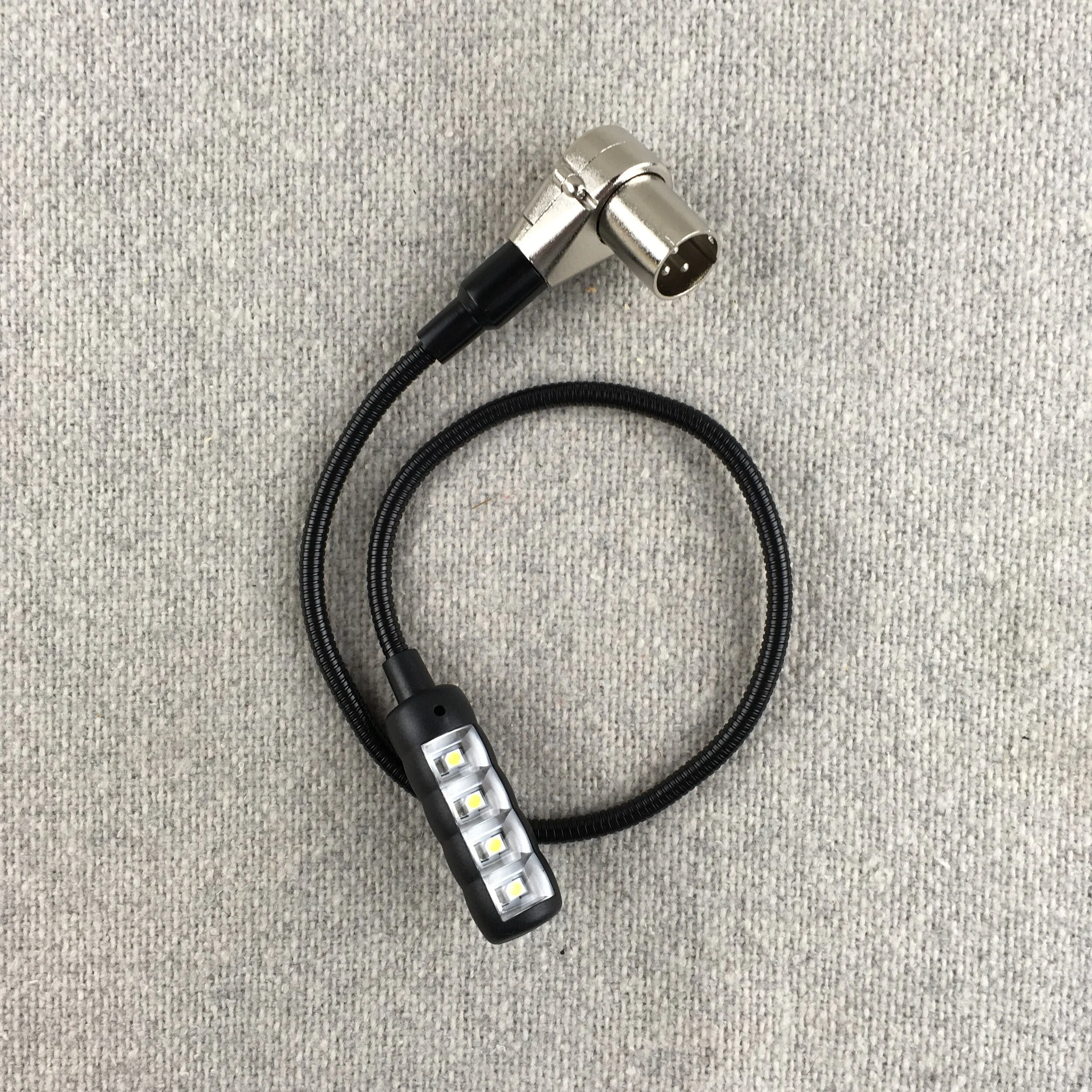

XLR 90° removable gooseneck lamp. It has 4 powerful white LEDs. It can be placed and removed quickly and and it draws a small amount of current from the case’s +12v line.
The price includes the installation of the XLR female on the top-right corner side of the case. If you buy a powered case it will be also connected to the XPSU.

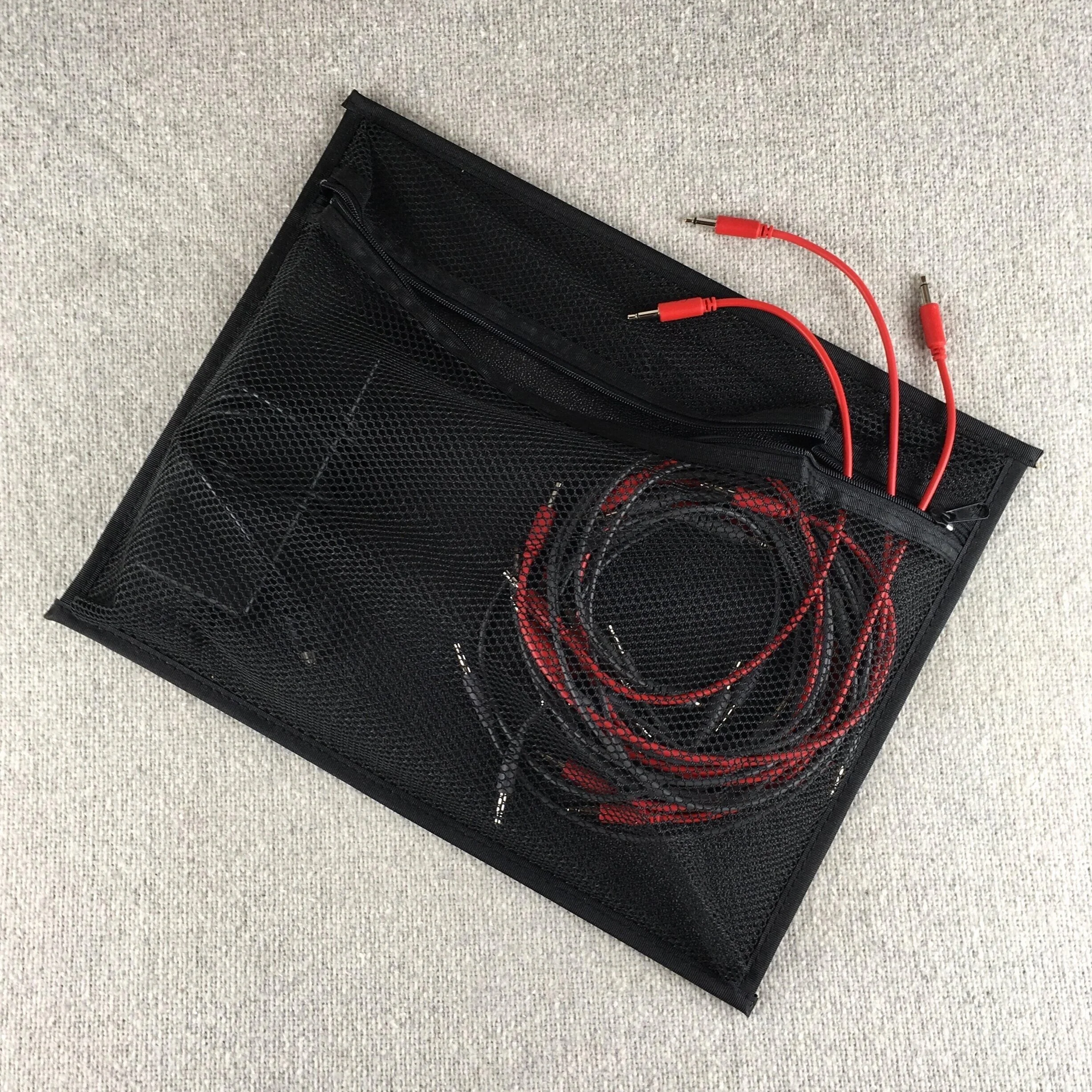

33x26,5 bag hooked up with velcro to the internal side of the lid.
It can be removed quickly and it has plenty of space for your cables, power brick or whatever you need to carry around with the case.
It fits in cases of at least 70hp.

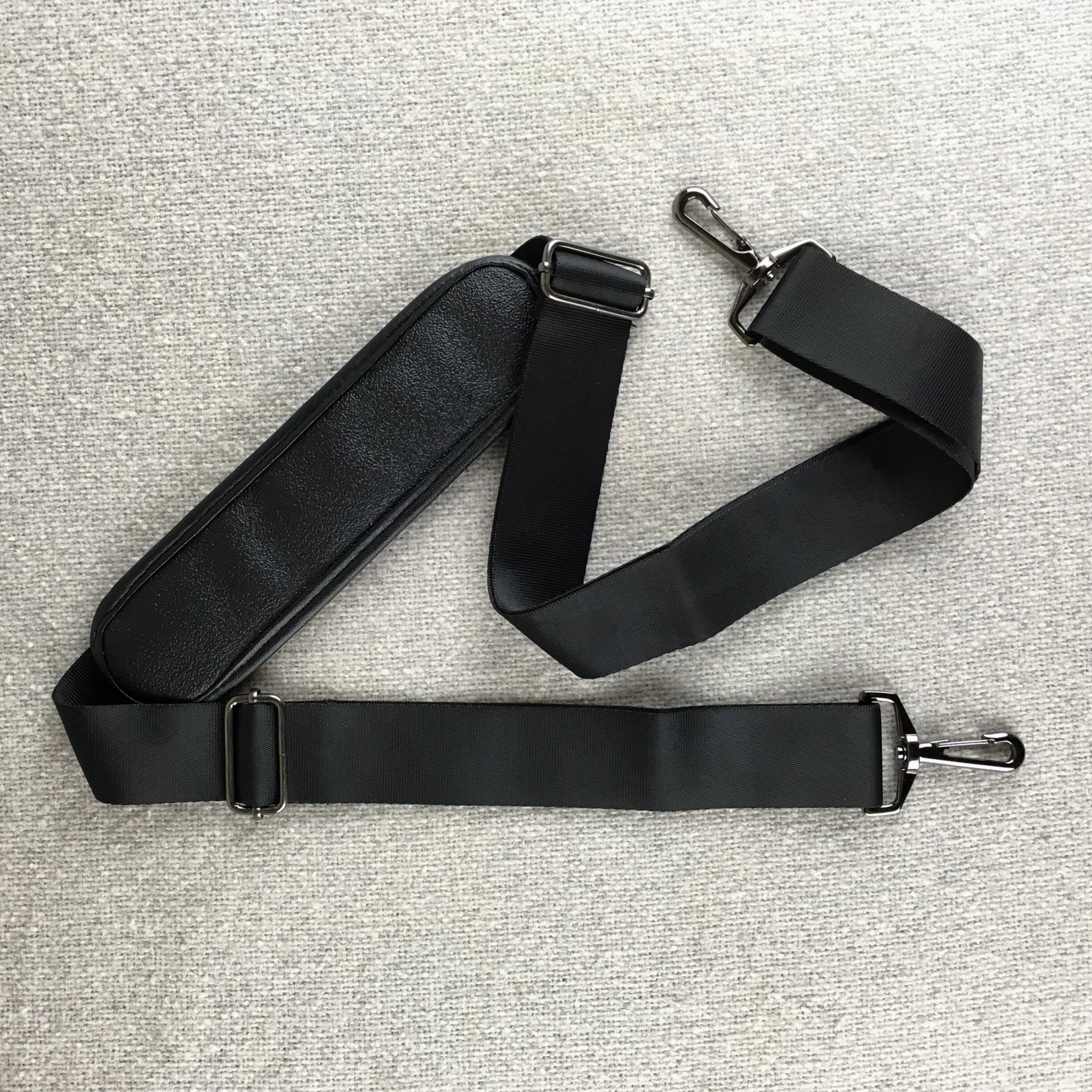

Adjustable length nylon/leatherette shoulder strap.
It can be easily removed from the eyelet on the case.
